PTFE inner tube
The fluid-carrying tube is made from polytetrafluoroethylene (PTFE), selected for its chemical resistance.
PRODUCT / AVIATION

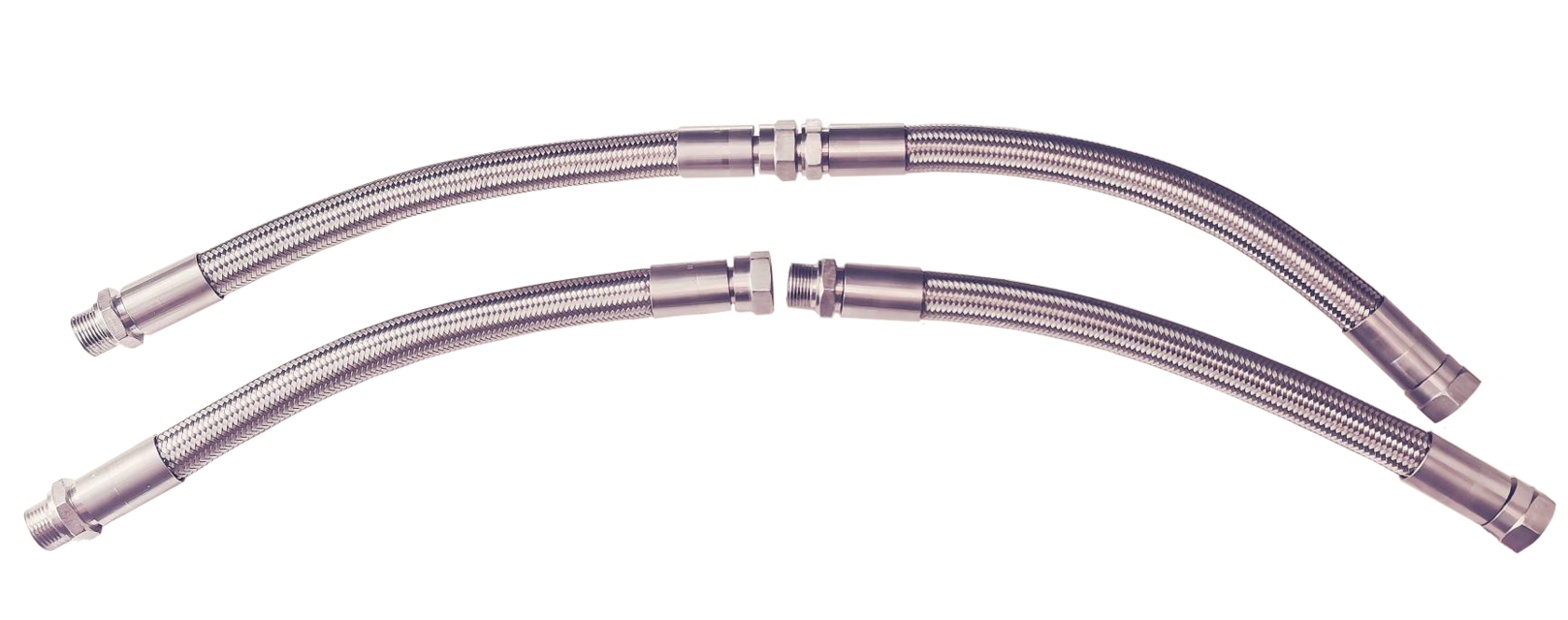

Aviation PTFE
hose assemblies.
A flexible PTFE inner tube, reinforced with stainless steel braid and assembled with application-specific end fittings.
PRODUCT DESIGNATIONS
Find your hose series.
Explore technical drawings, connection dimensions and pressure tables for each designation.

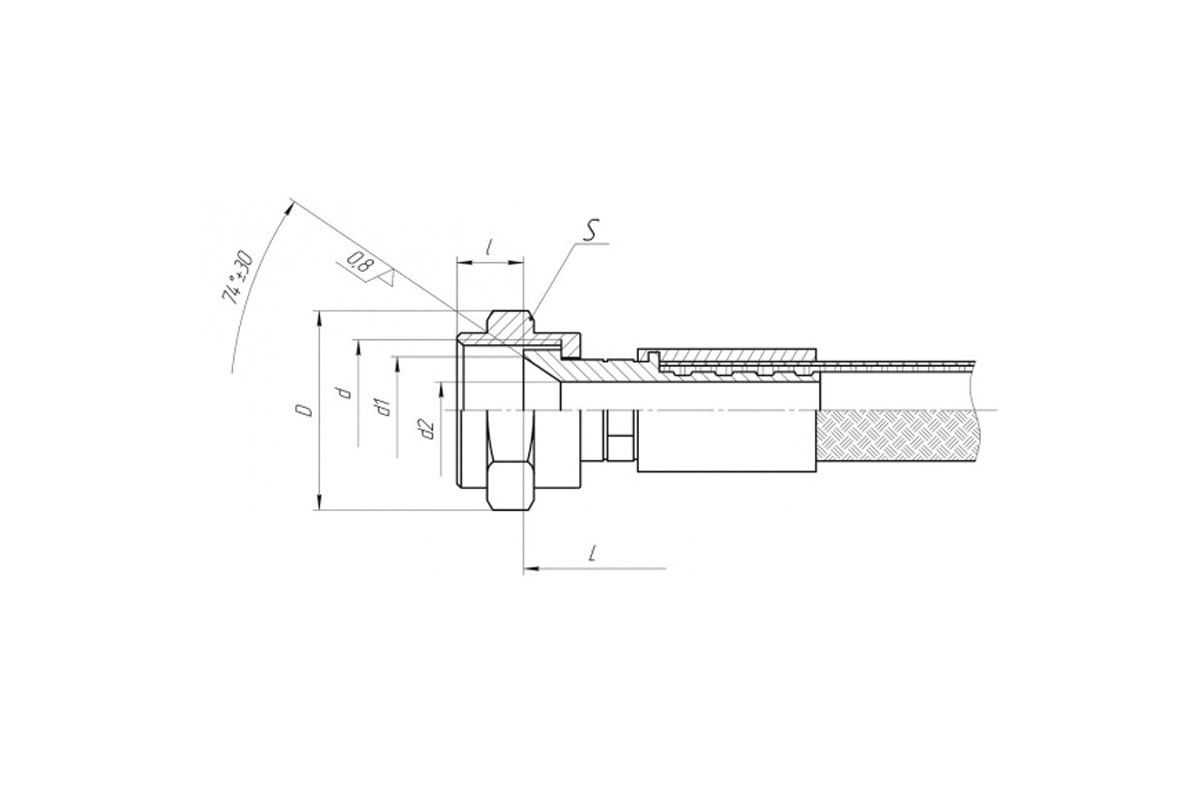

8Д0.447.005
74° cone fittings
Drawing & specifications8Д0.447.009
74° cone fittings
Drawing & specifications

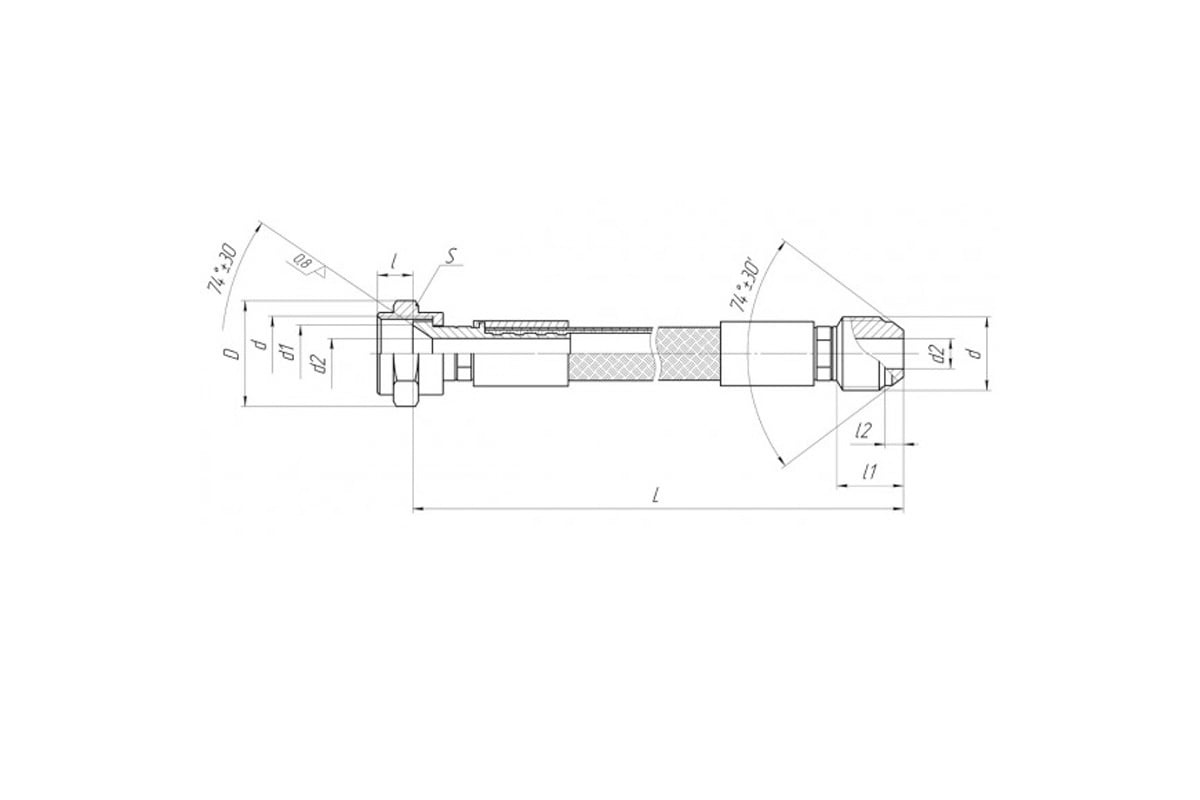

8Д0.447.013
74° external cone connection
Drawing & specifications8Д0.447.018
74° cone fittings
Drawing & specifications

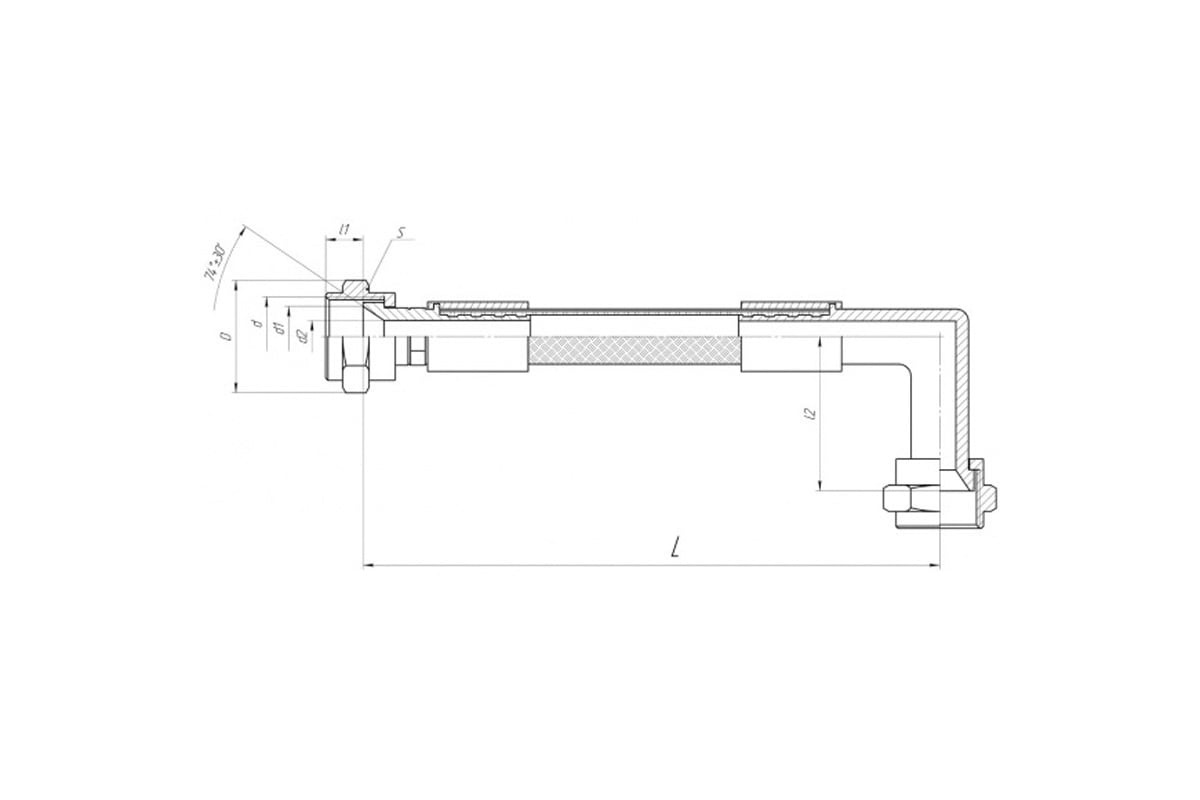

8Д0.447.021
90° elbow fitting
Drawing & specifications

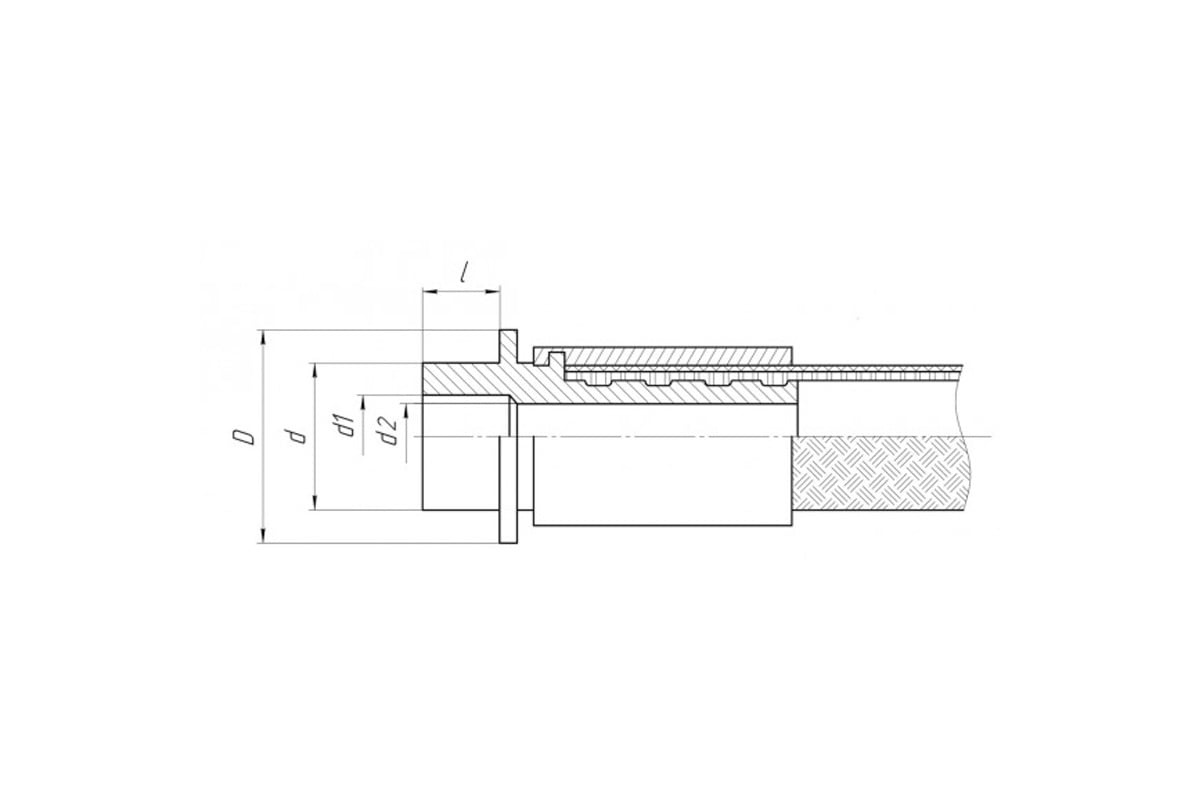

8Д0.447.022
Weld-end connection
Drawing & specifications

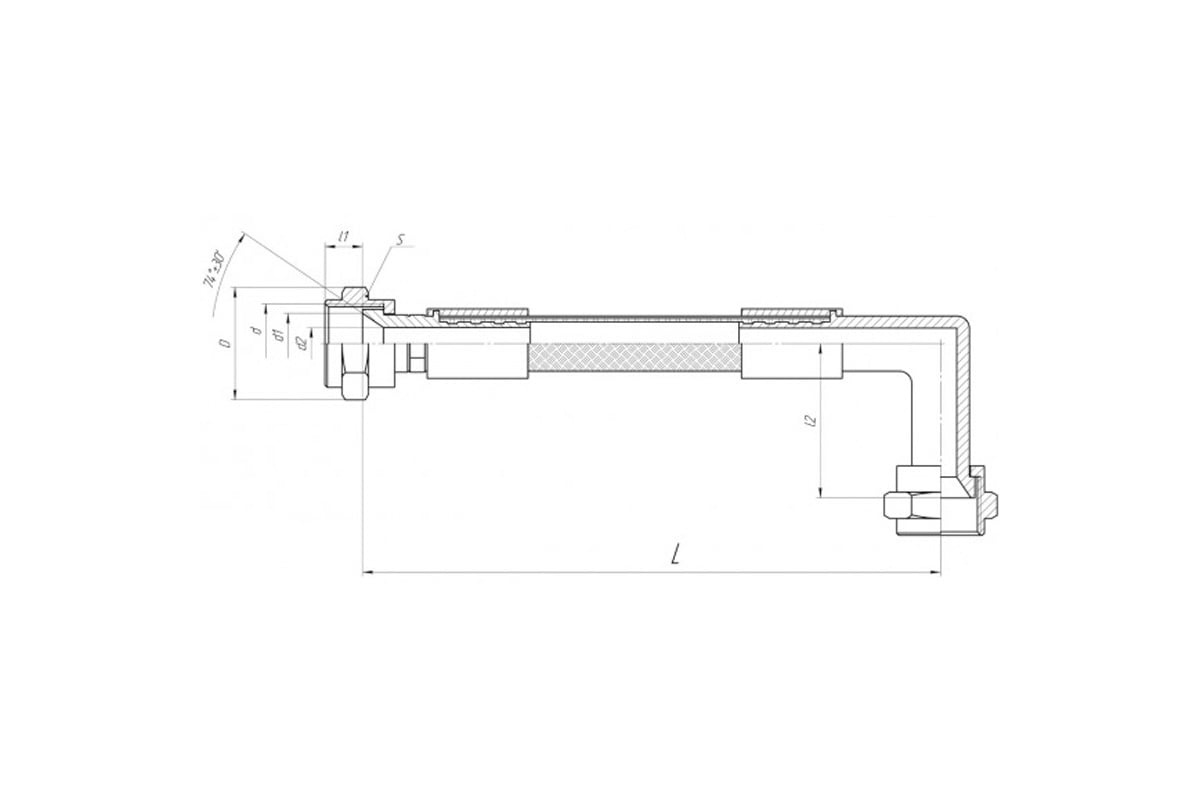

8Д0.447.033
90° elbow fitting
Drawing & specifications
8Д0.447.048
Spherical-seat fittings
Drawing & specifications

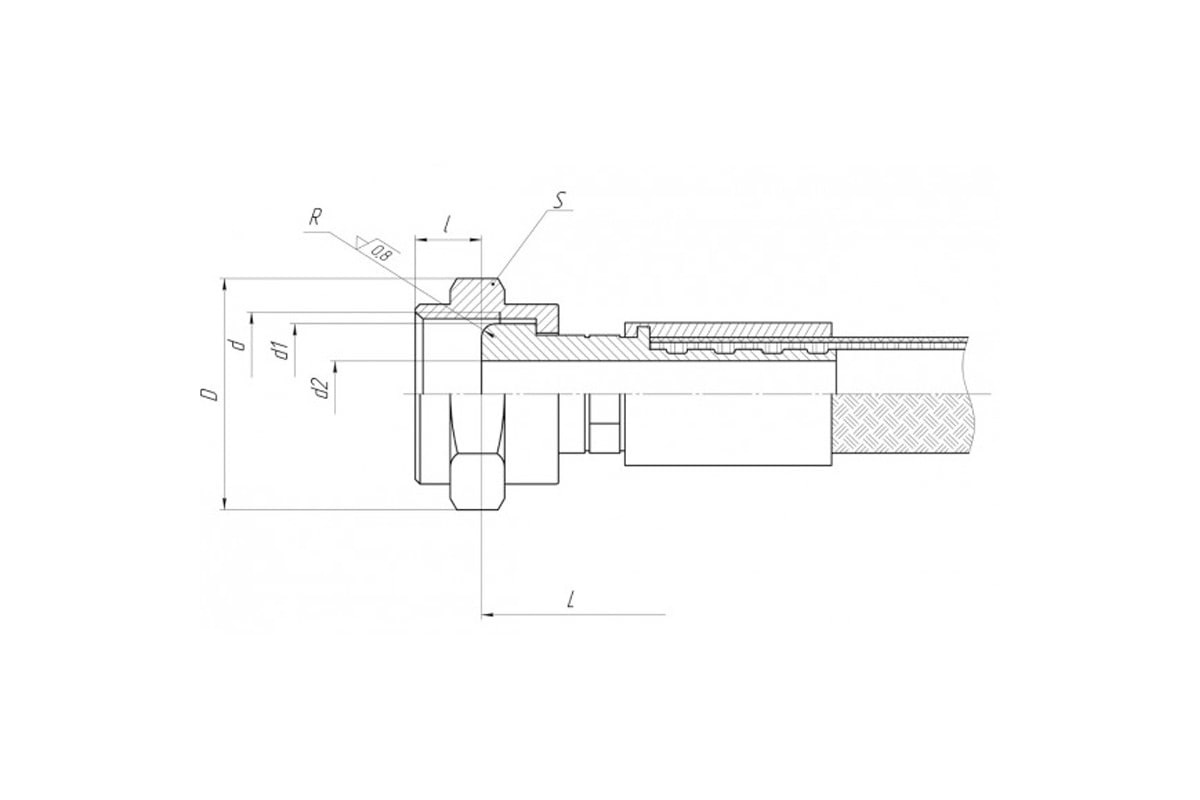

8Д0.447.058
Spherical-seat fittings
Drawing & specificationsMATERIALS & CONSTRUCTION
Every layer has
a purpose.
Stainless steel braid
High-strength stainless steel wire reinforces the tube and helps protect it from external mechanical influences.
End fittings
Connection geometry and assembly configuration are selected to match the installation requirements.
AVIATION APPLICATIONS
Specify the medium.
Define the operating conditions.
Discuss fluid compatibility and the complete operating envelope with our engineers for each proposed assembly.
Aviation fuel systems
Hose assemblies for transporting aviation fuels, with the configuration selected for the specified fuel and duty.
Hydraulic systems
PTFE hose assemblies for hydraulic fluid lines, specified to the required connections and operating conditions.
Lubrication systems
Flexible connections for oil lines, with material compatibility and installation requirements reviewed for the application.
CONNECTIONS & SPECIFICATION
Configured for
your installation.
Crimped and combined mechanical attachment methods are described in our aviation product range. Contact our team to discuss the suitable arrangement for your hose.
Technical parameters on request
Browse the series tables above for reference dimensions and pressure data. Assembly length, temperature limits and suitability are confirmed for the specific configuration.
OUR WORK
PTFE projects.
Real assemblies.
Explore completed projects, from aviation crimp connections to custom hose configurations.
